PE double wall corrugated pipe making equipment from China manufacturer

PE double wall corrugated pipe making equipment

Price:	50000.0~990000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJ series

Production Capacity: 60 sets per year

Delivery Date: Within 60 working days afte...

Use: Others

Brand Name: changjie

Capacity: 100-1200kg/h

Means of Transport: Ocean

Packing: packing in film or wood cas...

Plastic Type: PP/PE

Shaft Design: Others

Power: 95-820kw

HDPE corrugated drain water pipe making machine: HDPE drain waste water pip...

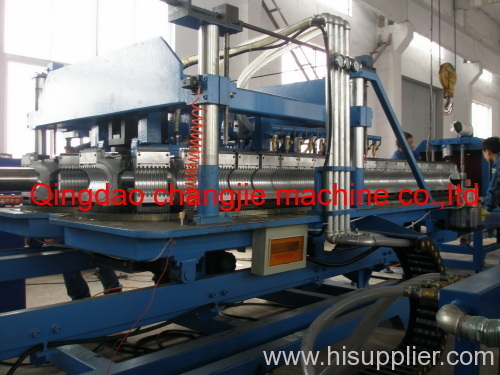

PE double wall corrugated pipe extrusion line
1.Pipe diameter:40-1500mm
2.Output:100-1200kg/h
3.Forming speed:0.25-8m/min

PE double wall corrugated pipe extrusion line

Close type corrugator and vacuum forming.
Forming module is moving in a tunnel.
Forming tunnel is clod by water.
Forming module is made of hard alloy steel and anti-corrosion and abrasion.
No any connection between forming module, then reduce time to change.
Provide dingle sand double wall corrugation pipe head die.

Model	SBW×1500	SBW×1000	SBW×500	SBW×250	SBW×160	SBW×90
Structure Form	Vertical	Vertical	Horizontal	Horizontal	Horizontal	Horizontal
Applicable Raw Materials	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE
Pipe Diameter Range	400-1500	250-1000	160-500	90-250	75-160	40-90
Max Extrusion Output	1200	850	600	350	200	100
Expansion Mode	Belling-on-line,double-wall socket joint	Belling-on-line,double-wall socket joint	Belling-on-line,double-wall socket joint
Forming Speed	0.25-2.5	0.25-2.5	0.4-4	0.5-5	0.6-6	0.8-8
Axis Height	1600	1600	1150	1100	1000	1000
NumberofMoldBlocks(pairs)	42	42	40	48	57	48
Total lnstalled power	820	660	385	240	150	95
